Multipurpose Chest Phantom N1 “LUNGMAN”

Description

Multipurpose Phantom providing a broad range of possible applications in research and training

Applicable for both plain radiography and CT scanning.
Wide variety of uses in interpretation training, anatomical education, evaluation and assessment of devices and other research.

Accurate anatomy and high quality substitute materials

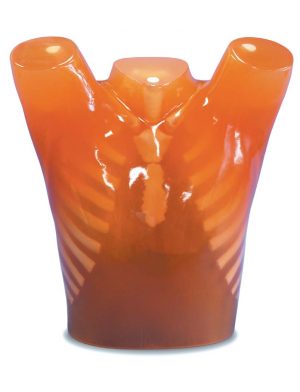

The phantom is an accurate life-size anatomical model of a human torso.
The thickness of the chest wall is based on measurement of clinical data.
The soft tissue substitute material and synthetic bones have x-ray absorption rates very close to those of human tissues.

X-ray

The phantom provides life-like radiographs very close to actual clinical images. The three-dimensional structure allows both PA and LATERAL images to be obtained. The phantom bones and vessels show life-like contrast gradations on the image along with tube voltages.

Computed tomography

Arms-abducted position of the torso suits the CT scanning. The pulmonary vessels are spatially traceable. Assessment of computer-aided detection systems is possible.



Expand N1 “LUNGMAN” with optional components:

Chest Plate
  • Optional chest plates to simulate a larger body type and X-ray absorption.
  • Differences in X-ray absorption depending on body volume can be observed.
  • Using 60mm thick plates, 30mm is added to the front and also to the back of the N1 chest phantom
Components for Radioisotope
  • Image fusion experiment with CT & RI can be performed.

Specification:

Set includes:
1 male chest torso
  • Main body: synthetic bones are embedded
  • Internal parts: separates into four parts
    Mediastinum: heart, trachea

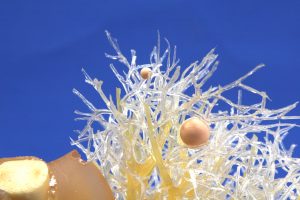

    Pulmonary vessels (right and left)
    Abdomen (diaphragm) block: no internal structure
  • 15 simulated tumors
  • 3 varieties of Hounsfield number: approx -800, -630,+100
  • 5 sizes for each type: diameters 3, 5, 8, 10, 12 mm
Materials:

Soft tissue: polyurethane (gravity 1.06)
Synthetic bones: epoxy resin

Phantom size:

43 x 40 x 48H cm, chest girth 94 cm
weight: approx.18 kg

Packing size:

59 x 52 x 30 cm, 25 kg

Optional parts

  • 41337-010 Chest plates for N1 (a set of anterior and posterior plates)
  • 41337-020 Urethane foam lungs
  • 41337-030 Liver RI container for N1
  • 41337-040 Gallbladder RI container for N1
  • 41337-050 Pulmonary nodule RI container for N1
  • 41337-060 Mediastinum with left myocardium RI container for N1
